HVAC van & truck wrap ideas
12 modern HVAC van & truck wrap ideas, each shown on a work vehicle, plus what to put on the wrap, what it costs, and the mistakes to avoid.
Your van can do its best advertising while it's parked. On a long service call it sits in a driveway for hours, and the neighbors walking past are next summer's customers. These 12 layouts are built to be read from across the street. Each is shown on a van, pickup or box truck, and each opens in our studio, ready for your own company name.
12 HVAC wrap ideas
Every concept below was made with WrapStudio for an invented company: the names and the 555 phone numbers are fictional. They follow what HVAC techs themselves say they like. In a recent r/HVAC thread about a new van wrap, they mocked "giant AI generated cartoon mascots" and praised the wrap with "basic colors, not neon or over the top, no stupid mascot, and simple, basic font." So: no mascots, no neon, no photo backgrounds, simple type.
Under each concept is the same design shrunk to roughly how big the vehicle looks from about 300 feet away. If you can't read the name there, neither can a driver.

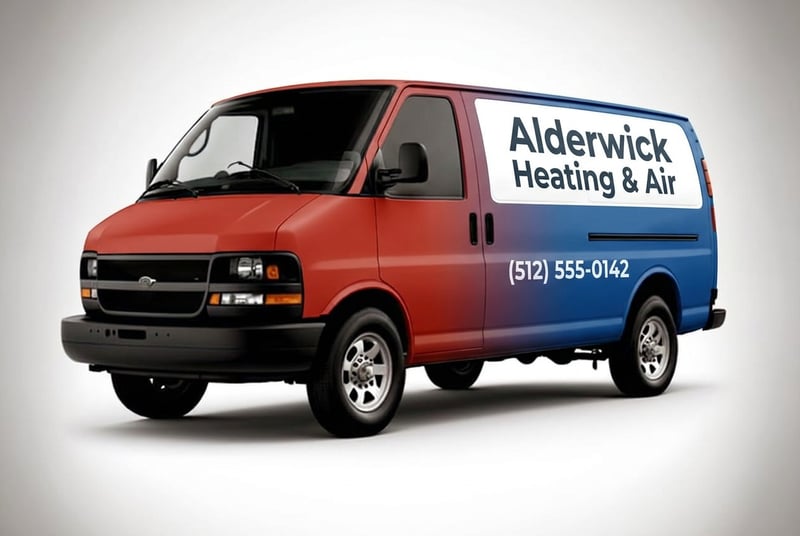

1. Heating-and-cooling split
A warm-to-cool color shift, red at the front and blue at the back, says "heating and cooling" before anyone reads a word, so the side doesn't need a list of services. The solid panel behind the name does the other half of the job: it keeps the lettering on a flat field, where it's readable, instead of on top of the gradient.

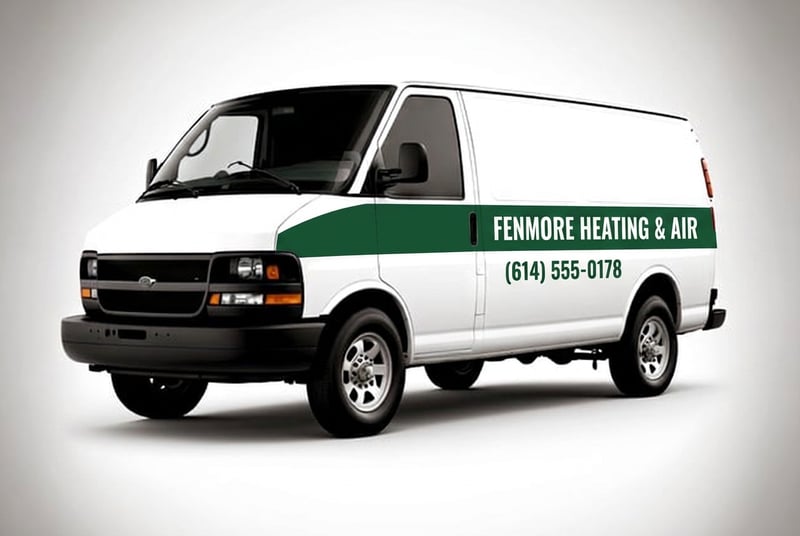

2. White van, one bold band
Keep the factory white and add one band in your brand color at door-handle height, with the name inside it and the phone number underneath. It's one of the cheapest looks on this list that still reads from across the street, and it's easy to repeat on every van you add.

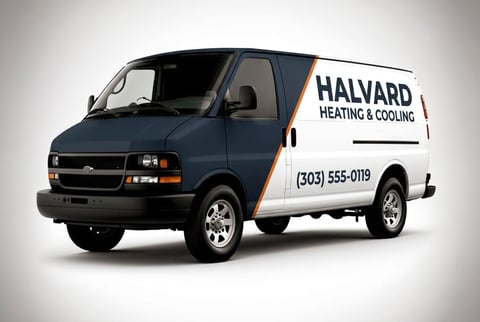

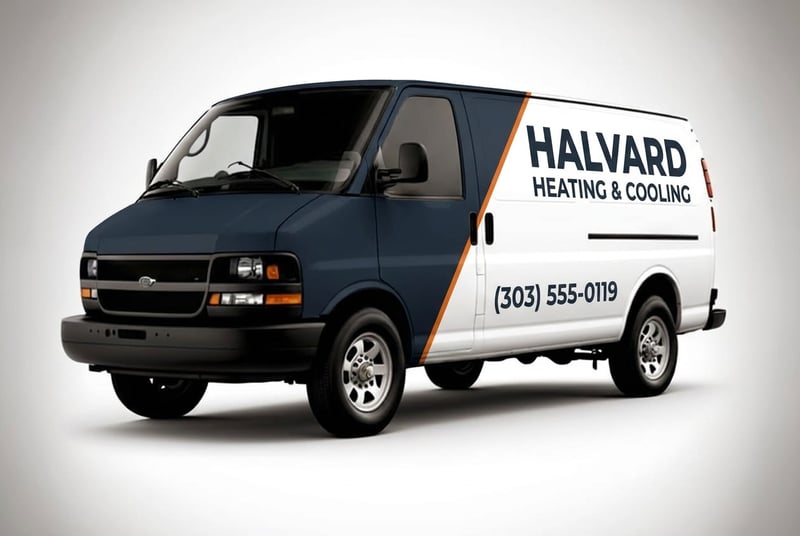

3. Dark cab, light body
A dark front and a light body, split on a clean diagonal behind the front door, with the name set right where the colors meet. The dark end hides road grime, the light end gives the lettering maximum contrast, and a thin accent line on the split makes it look deliberate rather than like two paint jobs.
4. Rear doors first
The driver stuck behind you at a red light is the one person who looks at your van for a full minute. Design the rear doors for them: the name, one short promise and the phone number as the biggest thing on the doors. The sides can stay simple.

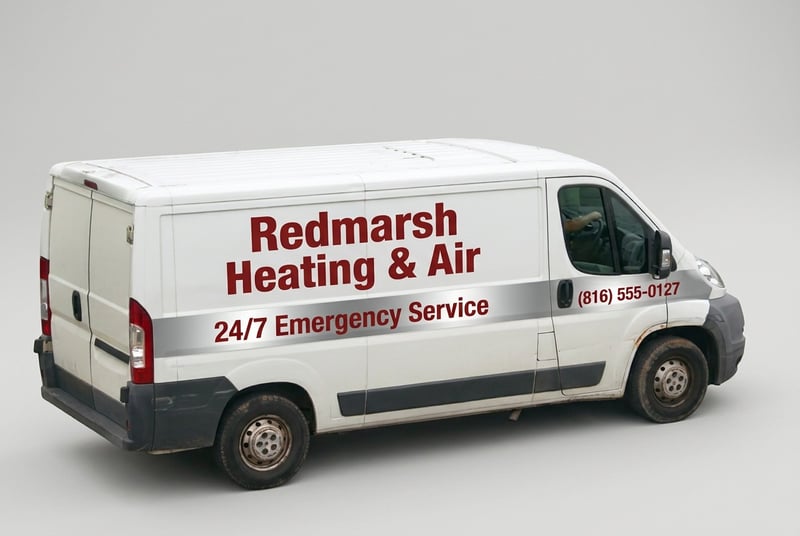

5. 24/7 night stripe
If you sell emergency calls, say so where it shows at night. A band of reflective film lights up in headlights, and "24/7 Emergency Service" is the one phrase worth putting on it. Everything else stays as plain as the rest of this list.
6. Doors and tailgate
A ladder rack or a toolbox hides most of a pickup's upper panels, so don't pay to wrap them. Put the name and "Heating & Air" on the doors and the number on the tailgate, and the truck keeps its factory paint. The concept shows the doors; the tailgate is the second place to letter.
7. One solid brand color
A common reason a wrap can't be read is lettering laid over a photo of sky, clouds or flames. One solid color with the name in white is the opposite: nothing behind the letters, so they read from farther away. It's also the easiest look to match exactly on the next vehicle.
8. A simple icon, not a cartoon
If you want something people remember, use one bold flat icon instead of a mascot: a flame, a snowflake, or one of each in two halves of a circle. Make it large, roughly the height of the windows. A simple mark looks like an established company; a cartoon rarely does.

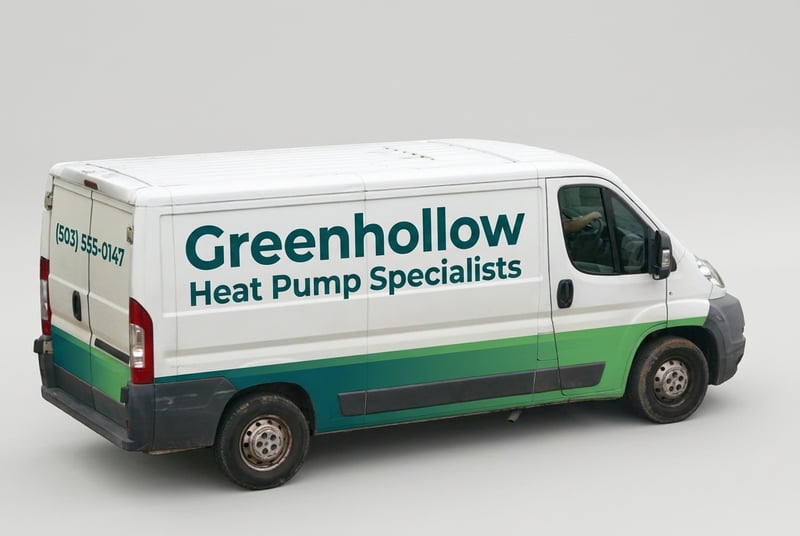

9. Heat pump specialist
If heat pumps are where you want to grow, make that the line under your name instead of "Heating & Air". Teal and green suggest efficiency without leaf clichés, and the specialism tells neighbors exactly what to call you for.

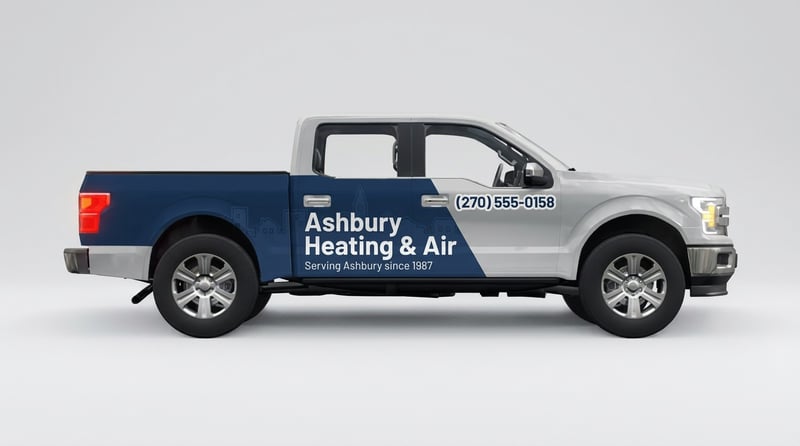

10. Hometown pride
Being local is often why people pick a small HVAC company over a national one. A faint town skyline or state outline behind "Serving [your town] since [year]" says it quietly. Keep the art faint, so it never competes with the name.

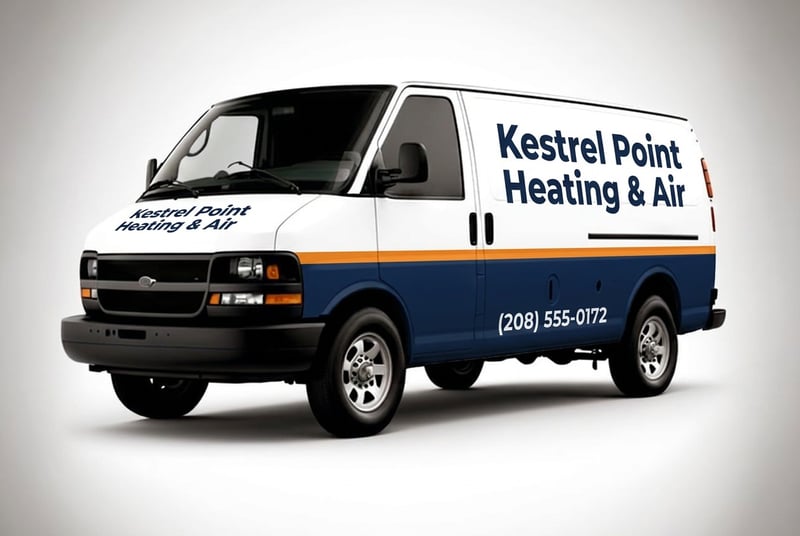

11. One fleet, one system
When you add vehicles, design a system rather than a picture: the same two colors, the stripe at the same height, the name in the same place. Every vehicle is shaped differently, so the layout has to be redrawn for each one, but people recognize the system from a block away.

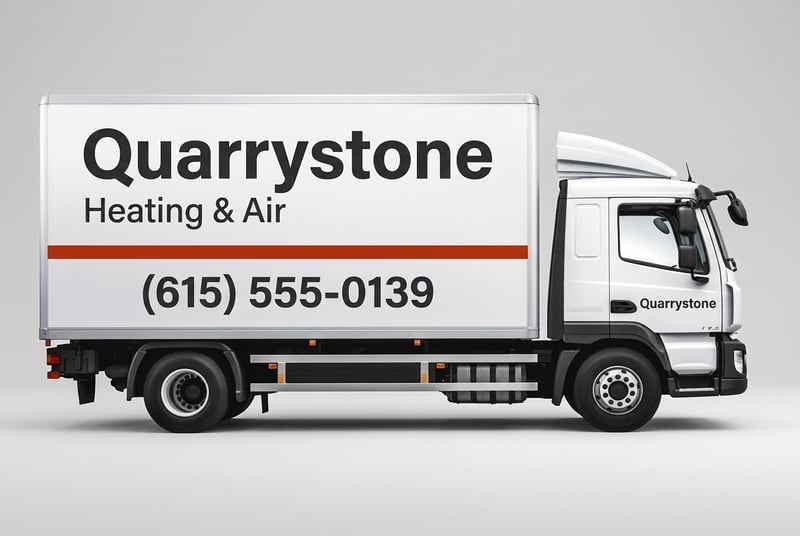

12. Install-crew box truck
A box truck's side is the biggest flat panel you'll ever own. Use it like a billboard: the name, the category and the phone number, big enough to read from a block away, and nothing else. The cab only needs the name on the door.
Except for the box truck, budgets are Hook Agency's three published tiers for lettering, partial and full wraps (see the cost table further down). High-roof vans, pickups and box trucks price differently, and so does your area.
What to put on an HVAC wrap (in order of size)
- Company name. The largest thing on the vehicle.
- "Heating & Air", or the category you want calls for, at nearly the size of the name. Your name alone rarely tells a stranger what you do.
- One promise, short and specific: "Same-day AC repair", "24/7 emergency service", "Heat pump specialists". Skip slogans that could belong to anyone.
- Phone number or a short web address, biggest on the rear doors. One number, not two.
- Service area, small.
- License number, where your state requires it on vehicles. Rules vary, so check yours.
How big is big enough? The United States Sign Council's guideline gives a legibility index for each letter style and color. For dark letters on a light background it works out to roughly 1 inch of capital-letter height for every 30 feet of reading distance. White letters on a dark color need 10–20% more, and white capitals on a dark color need about 1 inch for every 20 to 22 feet. To be safe, plan on 1 inch for every 25 feet, or every 20 feet for white capitals on a dark color.
| To be read from | Most lettering | White capitals on a dark color |
|---|---|---|
| 50 ft (the next lane) | about 2 in | about 2.5 in |
| 100 ft (across the street) | about 4 in | about 5 in |
| 200 ft | about 8 in | about 10 in |
| 300 ft (about a city block) | about 12 in | about 15 in |
That's the minimum for someone who is looking. A driver also has to notice the van first, so go bigger for the name and the number.
Mistakes that make HVAC wraps unreadable
- A service menu. "Heating, Cooling, Plumbing, Electrical & More" is the first thing nobody reads at speed.
- Photo backgrounds. Sky, clouds, ice and flames sit right behind the letters and swallow them.
- Thin script fonts. They look elegant up close and turn into a squiggle at 100 feet.
- Initials bigger than the name. People remember names, not monograms.
- Chrome or gradient text on busy art. Low contrast, twice over.
- Two phone numbers. Nobody remembers either.
- Cartoon mascots. The look the techs in that r/HVAC thread mocked hardest.
Here is the same invented company done both ways:
Spot graphics, partial or full: what each costs
One invented company at three coverage levels: lettering only, a partial wrap over the rear half, and a full wrap.
What companies that rank for HVAC wraps publish (checked October 2026):
| Coverage | Published price | Source |
|---|---|---|
| Lettering and decals | $300–1,000 | Hook Agency |
| Partial wrap | $1,200–2,500 | Hook Agency |
| Partial wrap (sides and rear) | from $1,500 | WrapMasters (Denton, TX) |
| Partial wrap | from $1,900 | Queen of Wraps |
| Partial wrap | $2,200–3,500 | Chicago Fleet Wraps |
| Van wrap, priced by the square foot (coverage not stated) | from $1,000 | Wrapmate |
| Van wrap, "depending on the size of the van and the type of wrap" | $1,500–5,000 | ServiceTitan |
| Full van wrap | $2,500–5,000 | Hook Agency |
| Full cargo-van wrap | from $4,200 | Chicago Fleet Wraps |
| Full wrap on a Transit, Sprinter or Express (design quoted separately) | $5,050–9,400 | WrapMasters (Denton, TX) |
Why the figures disagree:
- Vehicle size. A compact van and a high-roof extended van are very different amounts of vinyl.
- What's included. Some shops include design; others, like WrapMasters, quote it separately. Ask whether removing old graphics is included.
- Material. Cast vinyl with a protective laminate costs more than cheaper film and lasts longer.
- Where you are. Shop labor rates vary a lot between regions.
Ask for a written quote that lists the film and laminate, the design fee and installation separately, so two quotes can be compared line by line.
Van, pickup or box truck
The same idea has to be laid out again for each vehicle.
- Cargo and high-roof vans. Sliding-door seams and handles cut through anything on the side. Idea 1 starts its name panel behind the door handles, so nothing sticks out through the letters. A seam crossing the name is normal on a real van, but plan the layout so a seam never splits the phone number. Rear-door windows interrupt rear graphics, and rules on covering them vary, so ask your installer.
- Pickups. Ladder racks and toolboxes hide the bed sides. The doors and the tailgate are the reliable spaces (idea 6).
- Box trucks. Big flat panels, the easiest vehicle to make readable. The ribbed roll-up rear door distorts small text, so keep anything there large (idea 12).
If you run more than one vehicle, keep a fleet consistent with a few fixed rules: two colors, the stripe at one height, the name in one position (idea 11). A new vehicle then gets a redrawn layout, not a new design.
How long a wrap lasts and how to care for it
- Lifespan. A professionally installed cast-vinyl wrap usually lasts about 5–7 years on the sides of a work van. Roofs and hoods wear first, especially in hot, sunny climates.
- Washing. Hand washing is best, and a touchless car wash is the safer automatic option. Brush washes can scratch the film and lift edges. If you pressure-wash, 3M's current guidance is no more than 1,200 psi, a 40-degree or wider tip with a tip guard, and the nozzle at least a foot away and pointed straight at the film, never at its edges. Don't pressure-wash perforated window film.
- Heat and sun. Parking in shade where you can slows fading.
- Wrap or paint. Paint is permanent and still needs lettering. A wrap carries the whole design, protects the paint underneath and comes off when you sell the van or return a lease.
How to design your own HVAC wrap concept
- Start with what you have: your logo, your two colors, and the one category you want calls for.
- Generate a few concepts. Press Try this with my business under any idea above to see it on your vehicle type with your own name, in a few minutes.
- Check them small. Look at each concept at thumbnail size, like the 300-foot previews above. If the name and the number aren't readable, make them bigger or take something away.
- Take the best two or three to a designer or installer. They'll measure your exact vehicle, redraw the layout around its seams and handles, and prepare the print files. The concepts are for discussion, not print files.
Questions to ask the installer:
- Which film and laminate will you use? Is it cast vinyl?
- Is design included, and how many rounds of changes?
- Will you measure my exact vehicle (year, roof height, wheelbase)?
- What's the warranty on the film, and on the installation?
- How will you handle door seams, handles and the rear windows?
- How long will the vehicle be out of service?
Is the wrap bringing calls?
Two cheap ways to find out:
- Give the vehicle its own number or address. Put a tracking phone number that forwards to your main line, or a short web address you use nowhere else, only on the vehicles. Every call or visit to it came from the van.
- Ask every new caller where they heard of you, and write down "saw the van" when they say it. Neighbors can call weeks after the van was parked on their street.
Frequently asked questions
What's the average cost to wrap an HVAC van?
Published prices for a van wrap mostly fall between about $1,500 and $5,000: ServiceTitan puts a typical van wrap there, and Hook Agency lists $2,500 to $5,000 for a full wrap. Some shops start higher: Chicago Fleet Wraps starts full cargo-van wraps at $4,200, and a Texas shop lists $5,050 to $9,400 for a full wrap on a Transit, Sprinter or Express, with design extra. Hook Agency lists partial wraps at $1,200 to $2,500 and lettering or decals at $300 to $1,000. WrapMasters and Queen of Wraps start partials at $1,500 and $1,900, and Chicago Fleet Wraps puts a typical partial at $2,200 to $3,500.
Should an HVAC wrap list every service?
No. A passing driver has a few seconds, and a list of services is the first thing nobody reads. Put your name, "Heating & Air" (or the one category you want calls for) and your phone number, and let the website list the rest.
Partial or full wrap?
A partial wrap or a single bold band on a white van is the best value if the budget is tight, and it reads just as well when the lettering is big. A full wrap gives you a color nobody else has and protects more of the paint, but usually costs about 1.5 to 3 times as much.
How long does a van wrap last?
A professionally installed cast-vinyl wrap usually lasts about 5 to 7 years on the sides of a work van. Roofs and hoods wear out sooner, especially in hot, sunny climates, and a cheaper film without a protective laminate fades faster.
Can a wrapped van go through a car wash?
Yes, but hand washing is best, and a touchless car wash is the safer automatic option. Brush washes can scratch the film and lift its edges. If you use a pressure washer, 3M's current guidance is no more than 1,200 psi, a 40-degree or wider tip with a tip guard, and the nozzle at least a foot away and pointed straight at the film, never at its edges. Don't pressure-wash perforated window film.
Can I wrap a van myself?
Door lettering and simple decals are a realistic do-it-yourself job. A full wrap is not: getting vinyl around door handles, seams and curves without bubbles or lifted edges takes practice, and the most complete film warranties (3M's MCS, Avery Dennison's ICS Platinum) only cover graphics from certified shops.
What are the downsides of a vinyl wrap?
It wears out, so plan on replacing it every several years. A damaged panel has to be reprinted, cheap film or a poor install can peel or fade early, and removing a wrap that has baked in the sun for many years takes more work.
Wrap or paint?
Paint is permanent and you'd still need lettering on top of it. A wrap carries the full design, protects the factory paint underneath while it's on, and comes off when you sell the van or hand back a lease.
Do I need my license number on the van?
It depends on where you work. Some states require contractors to show their license number on vehicles and in advertising, and others don't, and some cities add their own rules. Check with your state's contractor licensing board before you print.
Design your HVAC wrap
Describe your company, pick your vehicle and see a concept with your own name on it in a few minutes. Take the ones you like to your designer or installer. Free to try.
